Modern Design and technology

KALEA FREEZE SPI

R290
Semi plug-in
Freezing

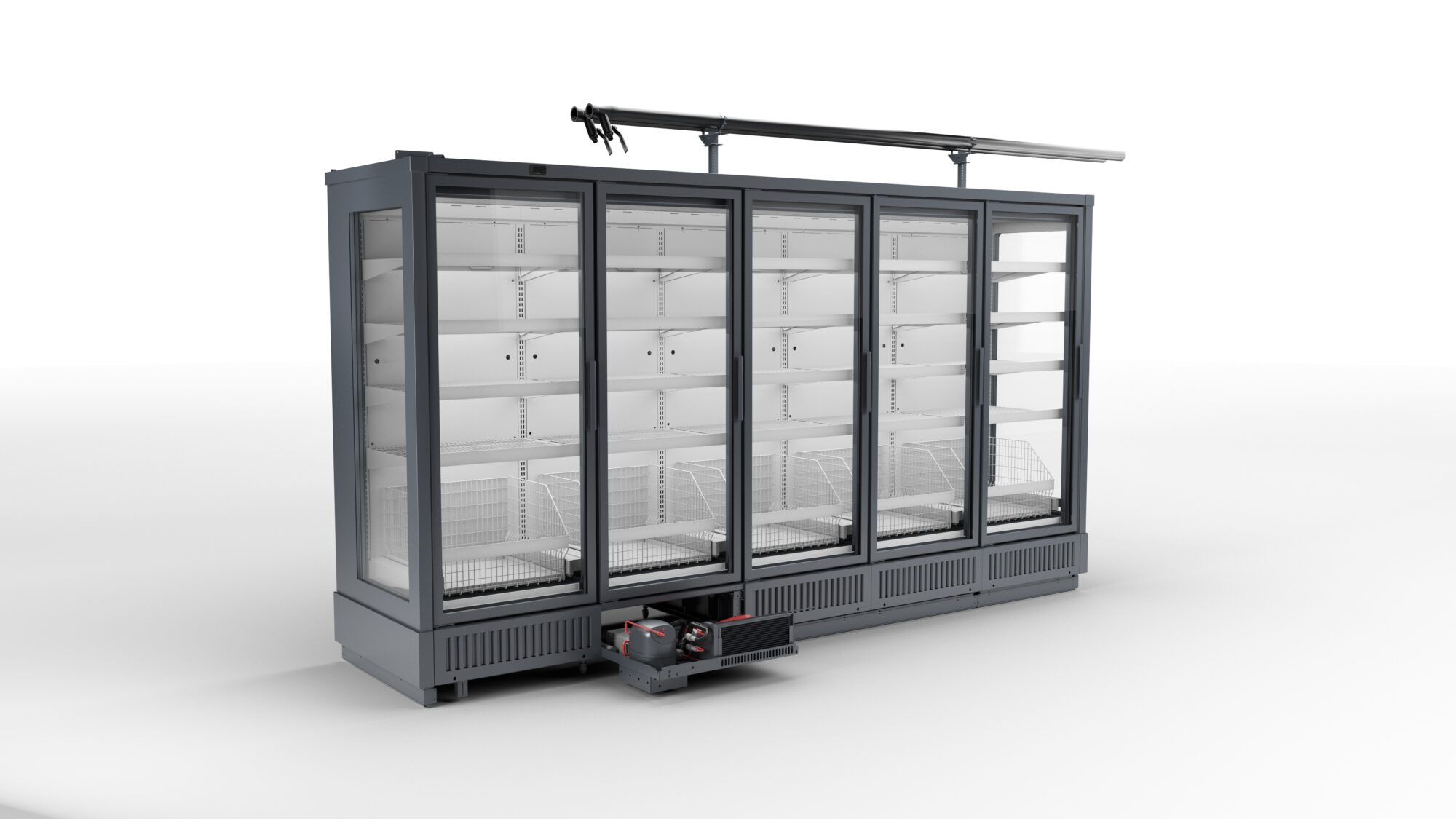

The technical components of KALEA FREEZE SPI are housed in the extendable base of the device. Thanks to the consistent design of the KALEA product families, refrigeration and freezer devices can be placed side by side.

Discover AHT KALEA Freeze SPI

Everything you need to know about AHT KALEA Freeze SPI

FLEXIBLE SYSTEM

KALEA Freeze SPI devices are already equipped with the necessary piping and flow control valve from the factory, allowing for quick installation through multiplex connections. With the Inbox technology, in the event of maintenance or servicing, there is no need to remove the products, as the remaining refrigeration circuit takes over the operation. This ensures convenience and uninterrupted operation during maintenance or service procedures.

HEAT RECOVERY

The waste heat generated by the freezer cabinet can be utilized for heating the storage area or other business sections. The included piping on the refrigeration shelf allows the waste heat to be directed to the external pump station and condenser. This eliminates the need for a separate machinery room, resulting in space and cost savings.

HIGH ENERGY SAVINGS

The multi-circuit technology (<150 g R290 per circuit) in KALEA FREEZE SPI makes it more energy-efficient and reduces the risk of failure.
<vspace=20px/>
<vspace=20px/>
The number of circuits varies based on the number of doors:
5 doors = 3 circuits
4 doors = 2 circuits
3 doors = 2 circuits
2 doors = 1 circuit

The automatic defrosting feature is available in all temperature ranges.

KALEA Freeze SPI Highlights

AHT KALEA Freeze SPI

01
FLEXIBLE SYSTEM

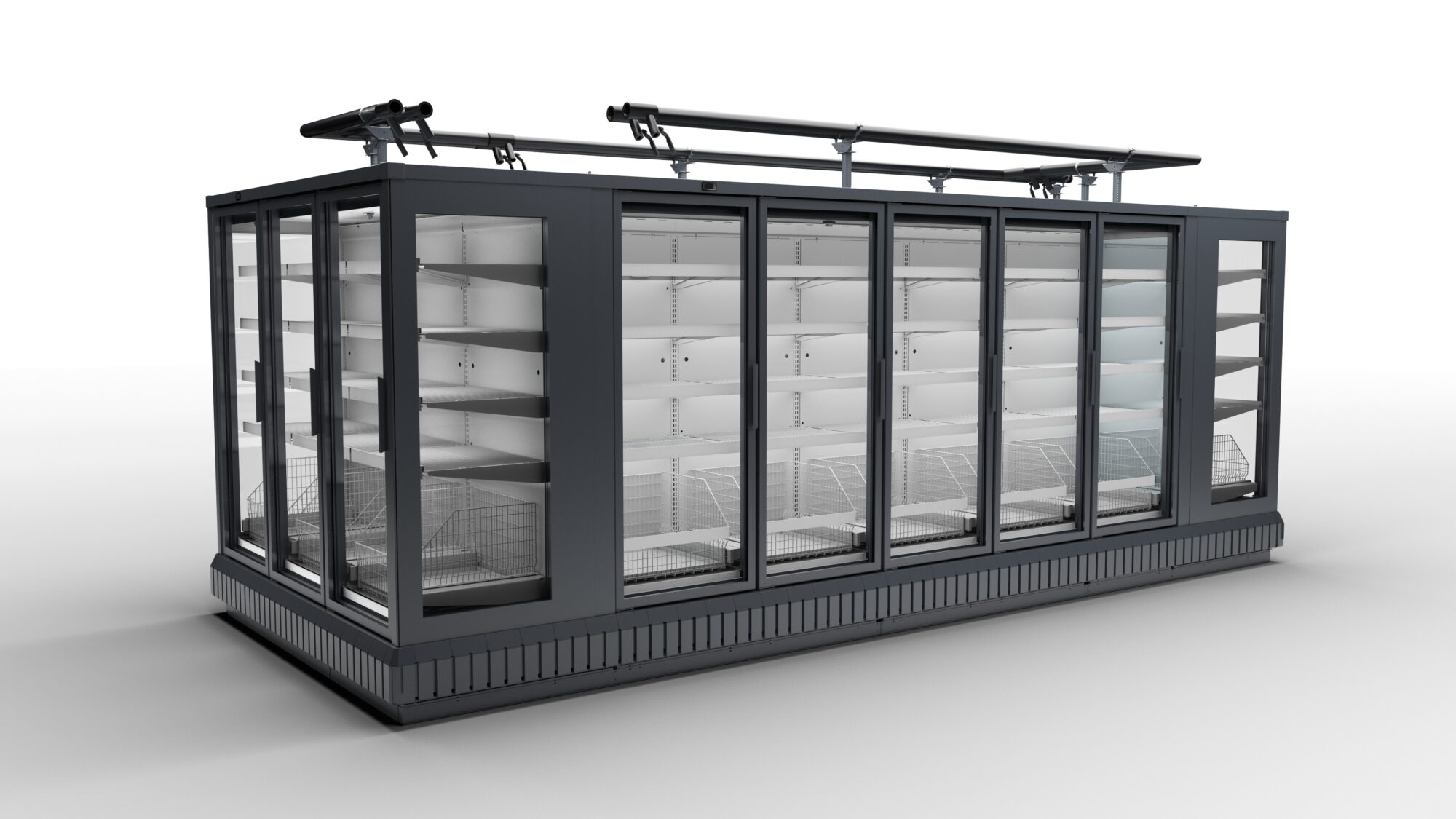

Thanks to its semi plug-in installation, KALEA FREEZE SPI is immediately ready for use. It impresses with optimal space efficiency, thanks to its slim design with depths of 84 and 99 cm. KALEA FREEZE SPI is available as both a line unit, stand alone and a end unit. It features a condensate water drain that connects to the existing building's condensate water drain. As all products in the KALEA family (Chill & Freeze) share a consistent design, refrigeration and freezer devices can be installed side by side, creating a cohesive visual display.
02
ENVIRONMENT AND CLIMATE
KALEA FREEZE SPI models operate with a hermetic and sealed cooling system, minimizing the risk of leakage. All units are approved at the highest safety level by VDE (Association for Electrical, Electronic & Information Technologies). Additionally, they use the environmentally safe and natural refrigerant propane (R290), making them particularly eco-friendly.
03
COMPATIBLE WITH AMS
With our Active Monitoring System (AMS), we detect issues before you even notice them. The AMS is a crucial add-on to all AHT products, making store management and monitoring of AHT refrigeration units significantly easier for you. Our devices are also compatible with other systems, enhancing their versatility.
04
VISUAL MERCHANDISING
KALEA FREEZE SPI offers optimal product visibility thanks to its anti-fog doors. The brilliant LED lights in the vertical bars, available in different colors (5000K, 6500K), provide excellent product presentation. The daily automatic defrosting ensures optimal operation. Particularly noteworthy are the numerous customization options, including end glass walls, bumper design, interior fittings, and more.

Data, information and support

Everything you need to know about AHT KALEA Freeze SPI
  • Technical specifications
  • Downloads
  • Dimensions
  • Images

Freezing
3L1 -15°C to -18°C

Configurations

_optionally with end cabinet on both sides

Salesfolder

User manual (coming soon)

Salesfolder inbox

The energy efficiency class information can be found in the European product database for energy labelling EPREL. For more information, please contact marketing@aht.at.
